Semiconductor Electrical Metrology & Inspection: Technologies, Market Dynamics, and 3D Scaling Challenges

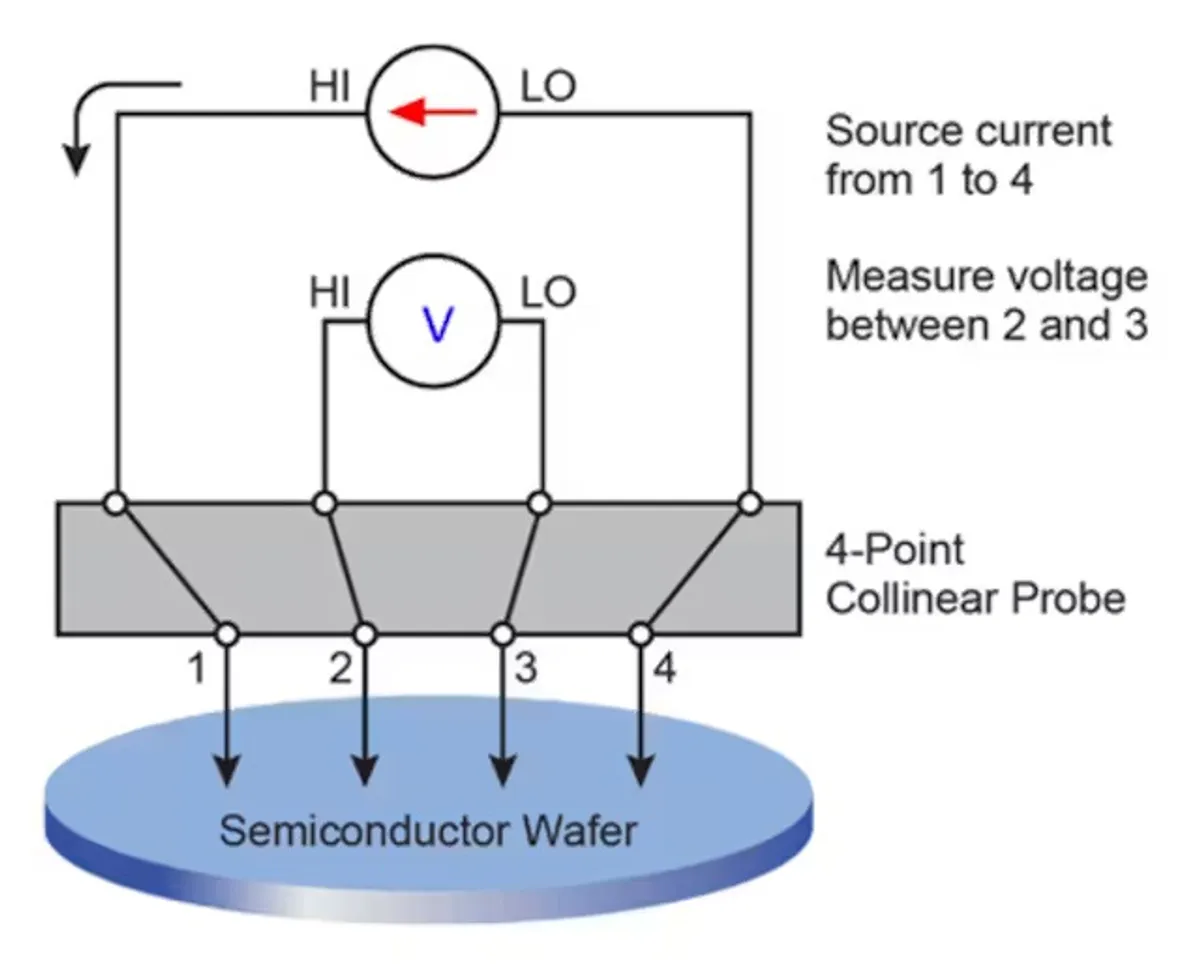

Electrical semiconductor metrology and inspection tools measure essential parameters to verify that advanced integrated circuits operate correctly. To determine sheet resistance without interference from contact resistance errors, four-point probes pass a current through two outer probes and measure the resulting voltage drop across two inner probes, allowing engineers to calculate thin-film resistivity down to sub-nanometer thicknesses. For parametric testing, specialized source-measure units equipped with triaxial cabling and guards measure threshold voltages, off-state leakage currents, drain-induced barrier lowering, and gate-oxide capacitance while suppressing parasitic noise down to femtoampere levels. Electron-beam systems build on these capabilities through voltage contrast imaging, where an electron beam charges wafer features so that open circuits appear dark while grounded shorts appear bright, revealing sub-10-nanometer electrical anomalies. Meanwhile, hybrid and non-contact characterization techniques combine optical reflectometry, X-ray methods, and emerging terahertz spectroscopy to evaluate thin-film conductivity and carrier mobility without physical contact.

These measurement techniques face major technical hurdles as the semiconductor industry transitions to complex 3D architectures. Gate-all-around nanosheets and high-bandwidth memory stacks feature buried channels, through-silicon vias, and sub-micron copper bonding pads that conventional top-down optical tools cannot inspect. Furthermore, the high sample density required for advanced AI logic and memory chips creates severe throughput bottlenecks. To solve these issues, semiconductor manufacturers are adopting highly parallel in-line parametric systems with per-pin source-measure units that cut test cycle times by a factor of three or more. Fabs are also deploying AI-driven defect classification to filter out false alarms, micro four-point probes with sub-micron tip spacing to measure delicate product dies directly, and near-field terahertz spectroscopy combined with atomic force microscopy to profile carrier concentrations at nanometer resolution without touching the wafer.

The economic demand for these capital-intensive tools is driven by leading-edge foundries and memory manufacturers expand their AI logic, memory, and packaging operations. As each new process node and 3D stacking layer increases process-control intensity, the global market for semiconductor metrology and inspection equipment—valued at approximately 15.3 billion dollars in 2025—is projected to grow at roughly eight percent annually to reach nearly 30 billion dollars by the early 2030s.

Production capacity for this specialized equipment remains highly concentrated among a small group of global suppliers and faces significant geopolitical pressures. KLA Corporation leads the overall process-control market with a 56 to 58 percent market share and holds over 70 percent of the optical wafer and reticle inspection segment. Applied Materials leads in electron-beam metrology, Lasertec dominates extreme-ultraviolet mask inspection, and Onto Innovation leads in advanced packaging metrology, while FormFactor and Technoprobe supply high-density probe cards. Parametric and functional test solutions are supplied primarily by Keysight Technologies, Advantest, and Teradyne. Because the core technology base is located almost entirely in the United States, Japan, and Europe, strict export controls restrict advanced equipment shipments to China. In response, Chinese chipmakers are building parallel domestic supply chains through regional equipment vendors, while long manufacturing lead times of 7 to 12 months for critical optics, electron guns, and precision stages continue to constrain global capacity expansion.
