Tungsten Vias & Contacts: The Critical Mineral Powering AI Chip Interconnects

Tungsten Vias & Contacts: The Critical Mineral Powering AI Chip Interconnects

NEED TO KNOW

  • Indispensable Microchip Fill Material: Tungsten fills high-aspect-ratio vias and contact plugs in sub-7nm logic and 3D NAND memory due to high thermal stability and void-free CVD coverage.
  • Extreme Upstream Supply Concentration: China controls ~80% of global primary tungsten mining and ~85% of ammonium paratungstate (APT) refining.
  • Semiconductor Precursor Purity: Tungsten hexafluoride (WF₆) gas requires distillation to >99.999% (6N+) purity with sub-ppb metallic impurities before chemical vapor deposition.
  • Western Diversification Initiatives: Projects like Almonty’s Sangdong mine in South Korea and domestic chemical recycling (e.g., Buffalo Tungsten) aim to supply up to 40% of non-Chinese demand.

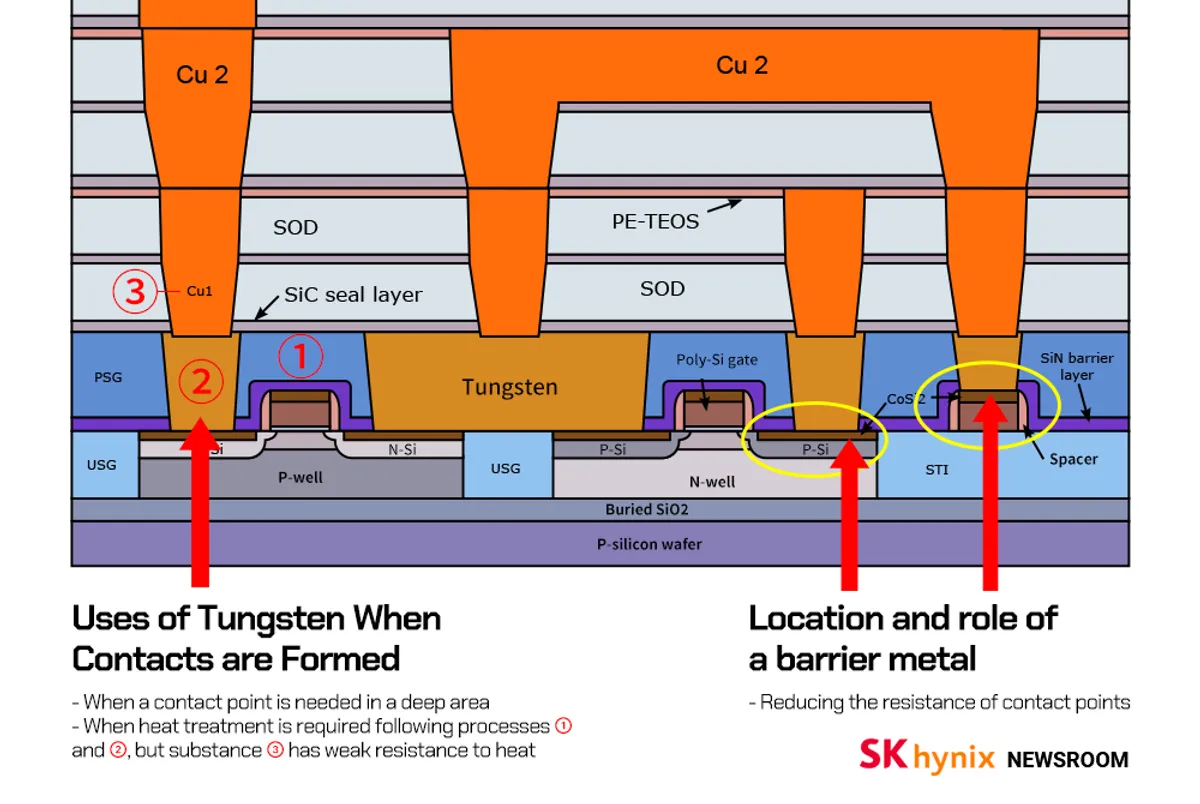

Tungsten is a critical metal used inside advanced AI microchips. It forms tiny electrical contacts that connect transistors to wiring networks and fills vertical pathways between chip layers. Chemical vapor deposition uses tungsten hexafluoride gas (WF₆) to coat complex microchip features evenly /China Isotope/. Tungsten resists heat and electrical wear, making it essential for high-performance processors and stacked memory chips. No current alternative matches tungsten for these high-reliability internal connections.

Producing semiconductor-grade tungsten demands exceptional purity and control. Ore (primarily scheelite or wolframite) is beneficiated to 65%+ WO₃ concentrate /MSR/, chemically processed through alkaline or acid leaching and purification to ammonium paratungstate (APT), then reduced to ultra-high-purity tungsten powder. This powder reacts with fluorine to yield WF6 gas, which is distilled to >99.999% (often 6N+) purity with parts-per-billion metallic impurities before CVD deposition of tungsten plugs and thin films. The unique capability lies in enabling dense, void-free fills in shrinking features where copper struggles thereby directly enabling the density and reliability gains AI accelerators require.

Tungsten Precursor & Microchip Via Deposition Process

1

Wolframite Ore Processing

Concentrate Refining

Crush tungsten ore and leach it chemically to produce ammonium paratungstate crystals.

2

Hydrogen Reduction

Metal Powder Production

Reduce paratungstate crystals with high-temperature hydrogen gas to form pure tungsten metal powder.

3

Fluorination & Gas Distillation

WF₆ Gas Purification

React tungsten metal with fluorine gas and distill the resulting WF₆ gas to 99.9999% purity.

4

Chemical Vapor Deposition

Seamless Via Filling

Deposit WF₆ gas inside tiny microchip holes to form solid metal wires that connect AI transistors.

Technical and cost challenges are intensifying. Maintaining parts-per-billion level purity at commercial scale is difficult; impurities trigger defects, higher resistivity, or beta-tungsten phases. Traditional refining is energy-intensive, corrosive, and generates high-salinity wastewater. Emerging solutions include yield-boosting ore processing advances (claimed 7–12% improvements) /ScienceDirect/, chemical recycling back to ammonium paratungstate (APT), and early-stage bioleaching from semiconductor waste, though the latter remains costly and pre-commercial for ultra-pure grades. New primary capacity takes 5–10+ years to develop and qualify for fabs, while recycling already supplies roughly 30% of global tungsten but faces purity hurdles for semiconductor reuse.

VIDEO EXPLAINER

AI-driven demand is structurally lifting the market. Hyperscale data centers, AI training clusters, and advanced packaging, including through-silicon vias (TSVs), require more chips with denser, more robust interconnects. The semiconductor industry is on track for explosive growth toward the $1 trillion mark, with AI infrastructure as the primary accelerator. Along the way, semiconductor fabrication processes are changing through the increasing adoption of hybrid metallization schemes, where alternative metals replace tungsten or copper in upper interconnect layers, combined with the explosive growth of 3D stacking, TSVs, and higher via/contact densities per chip enabled by advanced patterning, which together can sustain or even raise overall tungsten demand specifically for contact and via fills. Tungsten prices (concentrate and APT) surged sharply in 2025 amid this demand wave plus supply constraints, underscoring its role as a foundational enabler rather than a niche material.

Supply concentration creates acute geopolitical risk. China controls roughly 80% of global tungsten production and refining, with recent export licensing and U.S. tariffs amplifying price volatility and allocation uncertainty with Japan seeing imports drop ~50% in one recent month /Nikkei/. Tungsten world reserves exceed 4.7 million tonnes (China ~2.5 Mt, Vietnam surprisingly large at ~1.7 Mt), yet midstream processing outside China lags. The U.S. has had no commercial mining since 2015 and remains heavily import-dependent. Positive developments include Almonty’s Sangdong mine in South Korea (Phase 1 now producing ~2,300 t concentrate/year, targeting ~40% of non-Chinese demand at full capacity) and Western recycling/powder efforts (e.g., Buffalo Tungsten supplying WF6 feedstock, Japanese/Korean WF6 producers, and equipment leaders like Applied Materials and Lam Research).

Building resilient tungsten supply chains for the AI era will require parallel progress: accelerated non-Chinese mining and powder/WF6 qualification, scaled high-purity recycling, and allied coordination. Without it, the physical backbone of AI intelligence remains vulnerable to disruption.

Key Insights

What is the function of tungsten in advanced AI semiconductor chips?

Tungsten forms the contact plugs and high-aspect-ratio vias that connect transistors to the metal interconnect layers in logic chips, high-bandwidth memory, and 3D NAND stacks. Deposited via chemical vapor deposition using tungsten hexafluoride gas, tungsten offers low resistivity, excellent step coverage, and high resistance to electromigration, making it indispensable for chips scaled below 10 nanometers.

How dominant is China in the global tungsten supply chain, and what are the risks?

China controls approximately 80% of global tungsten mining and refining, exposing international chipmakers to export licensing restrictions and supply disruptions. While global reserves exceed 4.7 million tonnes, the United States has had no commercial tungsten mining since 2015, leaving the Western semiconductor manufacturing industry heavily reliant on imported materials.

What projects are being developed to diversify the supply of tungsten for chipmakers?

Almonty Industries is ramping up production at the Sangdong mine in South Korea, targeting 2,300 tonnes of concentrate annually to supply roughly 40% of non-Chinese demand. Additionally, Western companies like Buffalo Tungsten are expanding chemical recycling and powder processing to generate secure domestic feedstocks for tungsten hexafluoride gas production.
